Capture or Record Video from Acer Integrated Webcam

Someone asks me how to record video using an Acer integrated webcam. Yes, there is no "record video" option on Acer Crystal Eye Application, but don't worry, I'll show you that we can record video from Acer integrated webcam and it's so easy to do :)

All you need is Windows Movie Maker application. In Windows XP, this program already exists by default. Follow the steps below to record video from your laptop integrated webcam:


Acer Crystal Eye Application
Step 1:
Click "Start" > "All Programs" > "Windows Movie Maker"

Step 2:
On the Windows Movie Maker Movie Tasks click Capture from video device


Click to capture from device
Step 3:
In Available devices, click the analog device you want to use to capture video, and then, in the Video input source list, click the input line you want to use, then click Next.

I am using "Realtek HD Audio Input" as Audio Device and "Mic Volume" as Audio Input source (Aspire 4710)


In Available devices, click the analog device you want to use to capture video, and then, in the Video input source list, click the input line you want to use, then click Next.

Step 4:
In the Enter a file name for your captured video box, enter a file name for your captured video file. And then, in the Choose a place to save your captured video box, select the location where you want your video to be saved or click Browse to select a location. Click Next

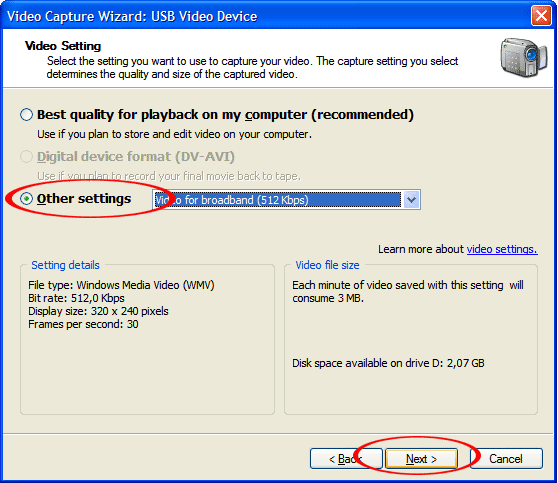

Step 5:
On the Video Setting page, select the video setting you want to use for capturing video and audio.



Available settings :

  • Video for Pocket PC (218 Kbps)
  • Video for Pocket PC (143 Kbps)
  • Video for Pocket PC (Full screen 218 Kbps)
  • High quality video (large)
  • High quality video (small)
  • Video for local playback (2,1 Mbps)
  • Video for local playback (1,5 Mbps)
  • Video for LAN (1,0 Mbps)
  • Video for LAN (768 Kbps)
  • Video for broadband (512 Kbps)
  • Video for broadband (340 Kbps)
  • Video for broadband (150 Kbps)
  • Video for ISDN (48 Kbps)
  • Video for dial-up access (38 Kbps)

Typically, a higher bit rate will result in higher-quality video with smoother motion. However, as the bit rate increases, so does the size of the captured video file.

Step 6:
To prevent the video into smaller clips after the wizard completes and the video is captured, do not select the Create clips when wizard finishes check box,

To prevent audio from playing over your speakers while capturing video, select the Mute speakers check box.

To automatically stop capturing after a time period has elapsed, select the Capture time limit check box, and then type or select the length of time you want to capture. Time is displayed in the form of hours:minutes(h:mm).

To begin capturing, click Start Capture.



Step 7:
To stop capturing, click Stop Capture.

If you have selected the Capture time limit check box, wait for the specified amount of time for video to be captured.

Done! :)
you can open your video in drive D:\

You can use any other webcams not just from Acer

UPDATE 1 :
Anonymous said...
i have acer aspire 5920 with vista.
this is how i record video WITH NO EXTRA SOFTWARE AND VERY EASILY!!
locate the program that came from acer that is called 'acer arcade deluxe' click on 'dv wizard'. there you go!!!
you can find your video in windows gallery. mine seem to save automatically to 'user name - videos'.
